Author: Micheal (Senior Sales Manager at WD Machines)

The choice between a tub grinder and a horizontal grinder depends primarily on your feedstock and site safety requirements. If you are processing bulky, irregular materials like massive tree stumps and root balls in open areas, a tub grinder like our WD3600 is the most efficient choice due to its gravity-fed rotating tub. However, for long materials such as whole trees, logs, or pallets, a horizontal grinder like the WD1690 is superior because its controlled feed system ensures a more consistent end-product and safer operation in confined or populated spaces. Ultimately, you should choose a tub grinder for raw volume in wide-open spaces and a horizontal grinder for precision and safety.

1. Understanding the Mechanics: How They Process Wood

The fundamental difference lies in the feed system. How the wood enters the machine determines what kind of material the machine can handle effectively.

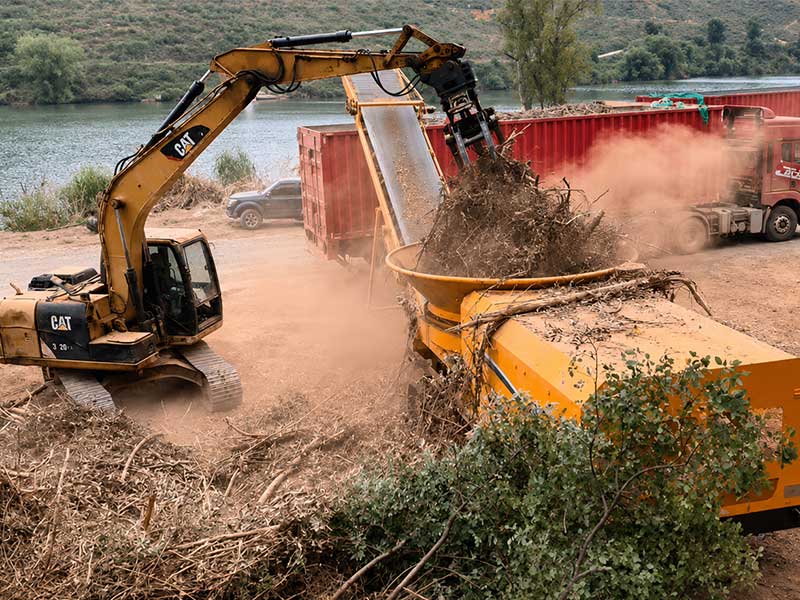

The Tub Grinder: The Power of Gravity and Rotation

Our WD3600 Series (including the WD3600T trailer-mounted and WD3600C crawler-mounted models) features a massive, deep rotating tub.

• How it works: Material is loaded into the tub using an excavator or loader. As the tub rotates, gravity pulls the wood down onto the heavy-duty hammermill at the bottom.

• Best Feedstock: This design is the undisputed king of stumps, large root balls, and bulky land-clearing debris. Because the tub is wide and open, it can accept massive, irregularly shaped pieces of wood that simply wouldn't fit into a conveyor-fed machine.

• The "Bulk" Advantage: You can "batch load" a tub grinder. This means your operator can dump a massive pile of debris and move on to the next task while the machine processes the load.

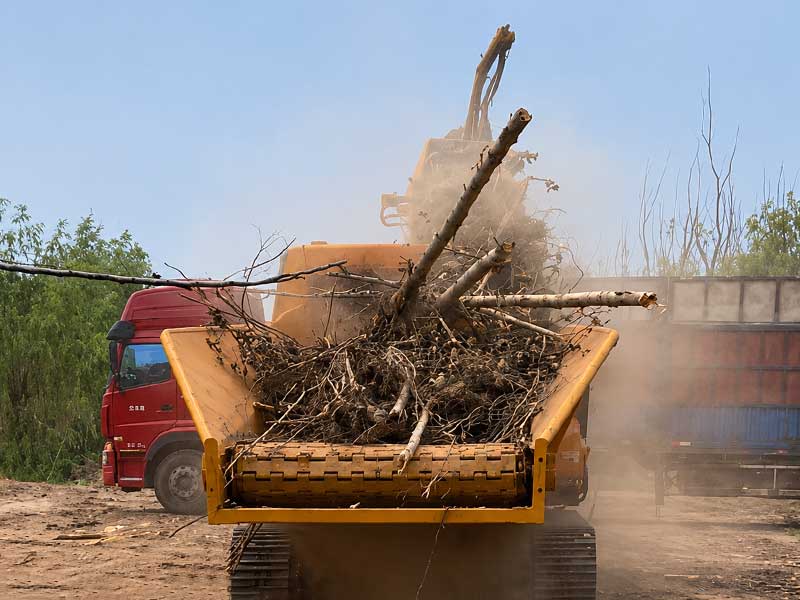

The Horizontal Grinder: Forced Feeding and Precision

The WD1690 Horizontal Grinder takes a different approach, utilizing a long feed table with a conveyor belt and a large-diameter compression feed roller.

• How it works: Material is placed onto the conveyor and moved horizontally toward the mill. The feed roller climbs over the material, crushing it down and forcing it into the spinning rotor.

• Best Feedstock: Horizontal grinders are optimized for long materials, including whole trees, long logs, slabs, pallets, and construction lumber.

• Controlled Throughput: The feed system is intelligent. If the engine RPM drops, the feed roller automatically slows down or reverses to prevent clogging, ensuring the engine always runs at its peak efficiency.

2. Technical Comparison Table: WD3600 vs. WD1690

To simplify your procurement process, here is a technical breakdown based on our current production standards at WD Machines:

3. Safety: A Critical Operational Factor

As a sales manager, my first priority is your team's safety on the job site.

Tub Grinder Safety:
Because the tub is open at the top, there is a risk of "thrown objects." If a hammer hits a piece of metal or a particularly hard knot, it can launch it out of the tub like a projectile. At WD Machines, we provide safety deflectors, but we still recommend a strict exclusion zone around the machine during operation.

Horizontal Grinder Safety:
The WD1690 is inherently safer for urban environments or sites near public roads. The grinding takes place inside an enclosed chamber, and the material is fed in a controlled manner. This significantly reduces the risk of flying debris, making it the preferred choice for contractors working in tighter, populated spaces.

4. Maintenance and Operating Costs

Both machines are built with high-strength alloy steels and tungsten carbide-tipped hammers, but their maintenance profiles differ:

• WD3600 Maintenance: With fewer conveyor belts and rollers, the tub grinder has a simpler mechanical drive system in the feed area. However, the rotating tub bearing requires consistent lubrication and attention.

• WD1690 Maintenance: The horizontal system involves more moving parts like conveyor chains and hydraulic rollers. While this requires more frequent inspections, it offers better protection for the main engine by preventing "shock loads."

5. Regional Application: Why it Matters for You

At WD Machines, we've seen how regional needs dictate machine choice:

• Southeast Asia (Malaysia/Indonesia): For palm oil plantations dealing with massive piles of empty fruit bunches (EFB) or old trunks, the WD3600C Crawler is a powerhouse. Its ability to move through soft plantation soil while processing huge piles of waste is unmatched.

• Forestry & Biomass (Europe/North America): For companies producing high-quality wood chips for biomass power plants, the WD1690 is usually the winner. The precision of the horizontal feed ensures that the chips meet the strict size requirements of industrial boilers.

6. Micheal’s Final Verdict: Which One Should You Buy?

To make the right choice, answer these three questions:

1. What is 80% of your feedstock? (Large Stumps = Tub; Long Logs/Trees = Horizontal).

2. Where will you work? (Rural/Open Forest = Tub; Urban/Tight Workspace = Horizontal).

3. What is the end goal? (Raw volume = Tub; Precision chip size = Horizontal).

Contact WD Machines Today

At WD Machines, we don't just sell equipment; we provide the solution to your waste problems. Whether you need the raw power of the WD3600 or the controlled efficiency of the WD1690, we are here to support your growth.

Ready for a quote or a live demo video?
Visit our official site at www.wdmachines.com or reach out to me, Micheal, to discuss your specific project requirements. Let’s turn your wood waste into profit!
