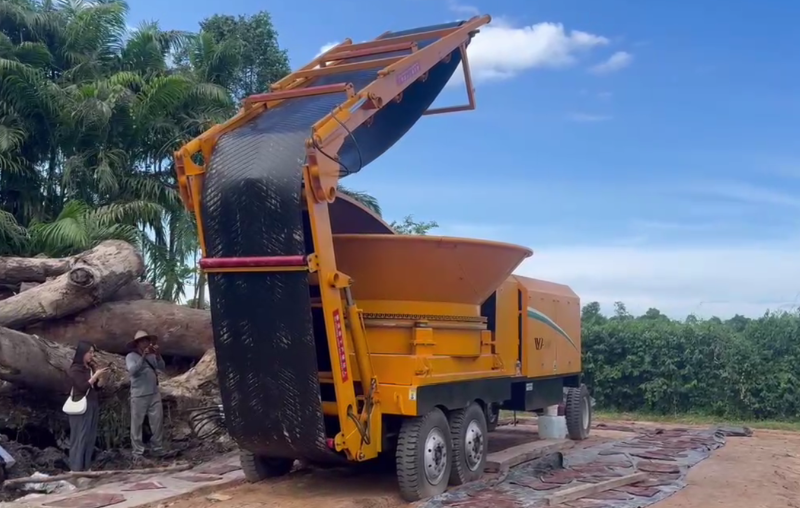

Trailer type Tub Grinder-WD3600T
Model | WD3600T |
Raw material | Tree roots， branches， straw, etc |
Machine Size | 11000mmx2550mmx4000mm |
Machine Weight | 17T |
Capacity | 25~40T/hour |
Engine Power (KW) | 408KW |
Inlet size | Ø 3600mm |
Cutting hole size | Ø2350mm |
Feed tray depth | 1370mm |
Spindle working speed | 850rpm/min |
Fuel consumption rate | 20-40L/H |
Fuel tank volume | 420L |
Hydraulic tank volume（L） | 420L |
Cutting roll size | 2200mmx670mm |
Cutter | 10 sets |
Cutter size | 465mmx220mmx20mm |
Cutter screws | 5 pcs/knife |
Number of bed knives | 2 set |
Bed knife size | 1100mmx110mmx30mm |
Bottom cutter screws | 12 pcs |

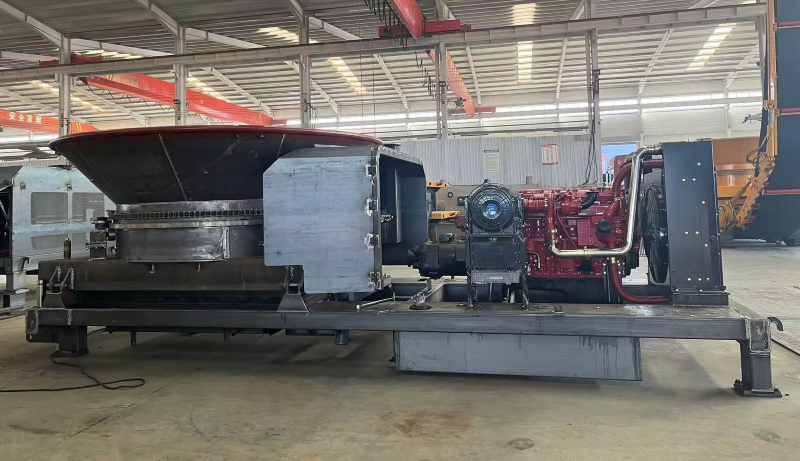

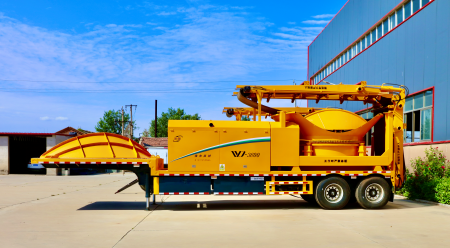

1. Standard trailer type, can be towed by forklift, suitable for short-distance movement

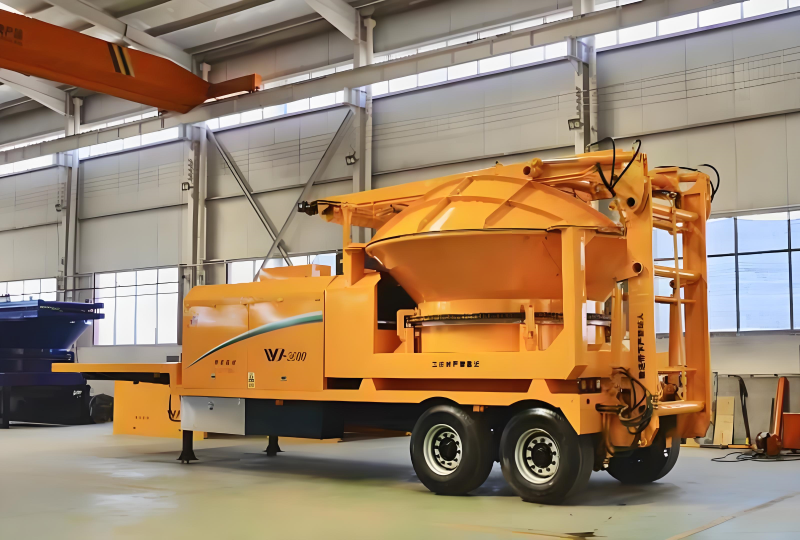

2. Standard semi-trailer double towed type can apply for vehicle license
3. The workbench can be turned over at 90 degrees for cleaning up materials and maintenance

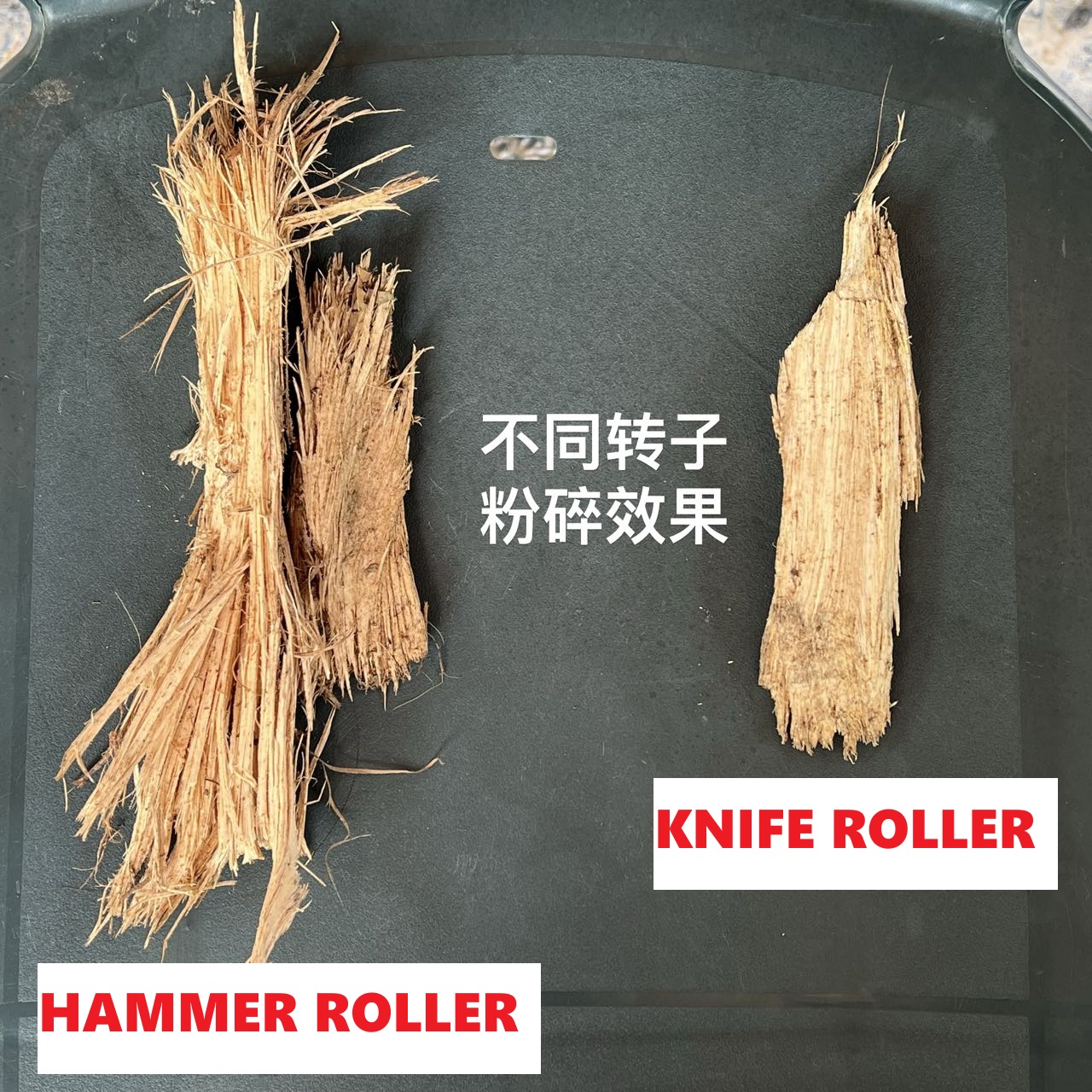

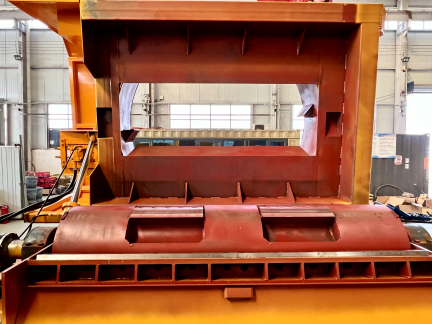

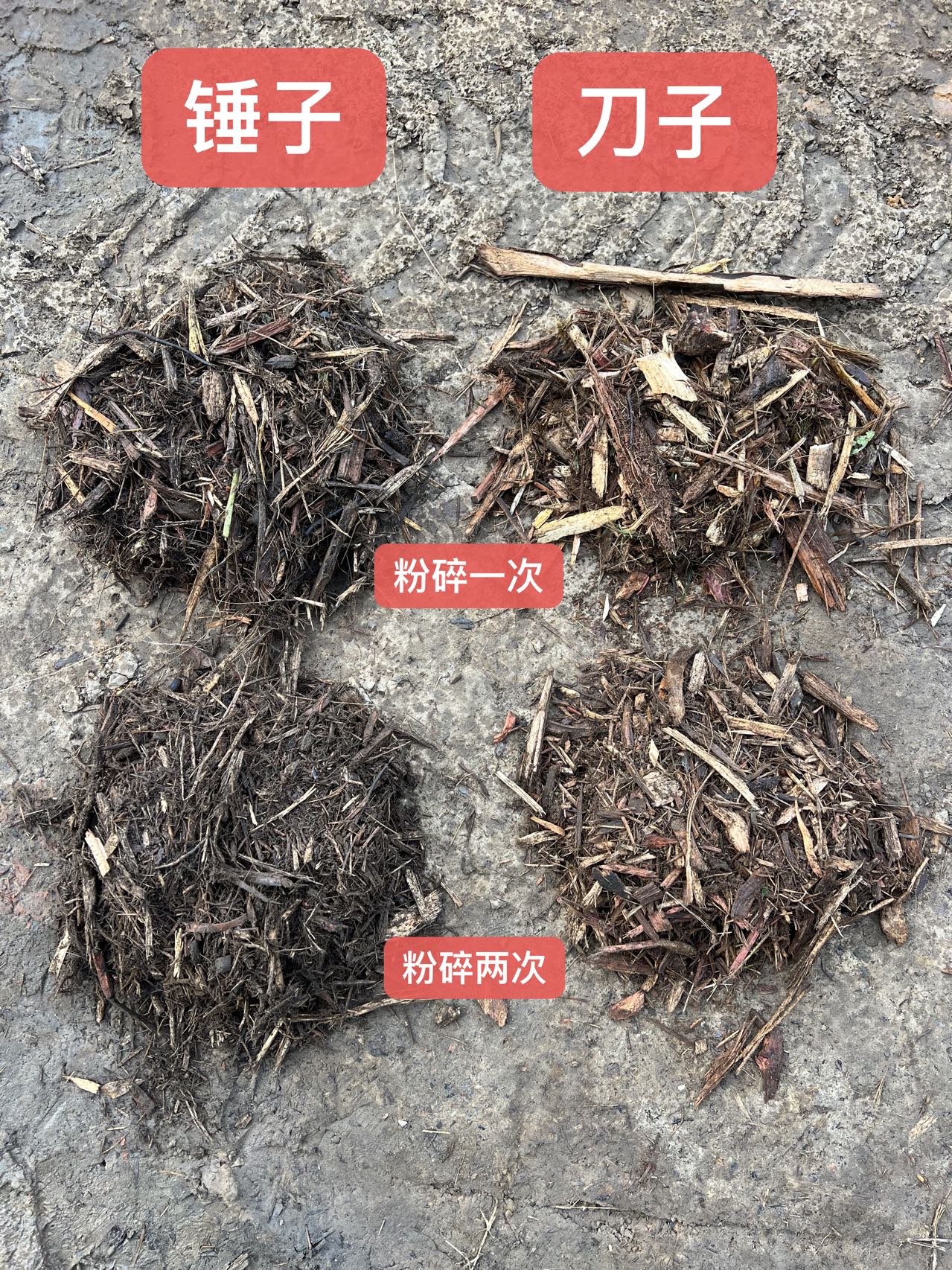

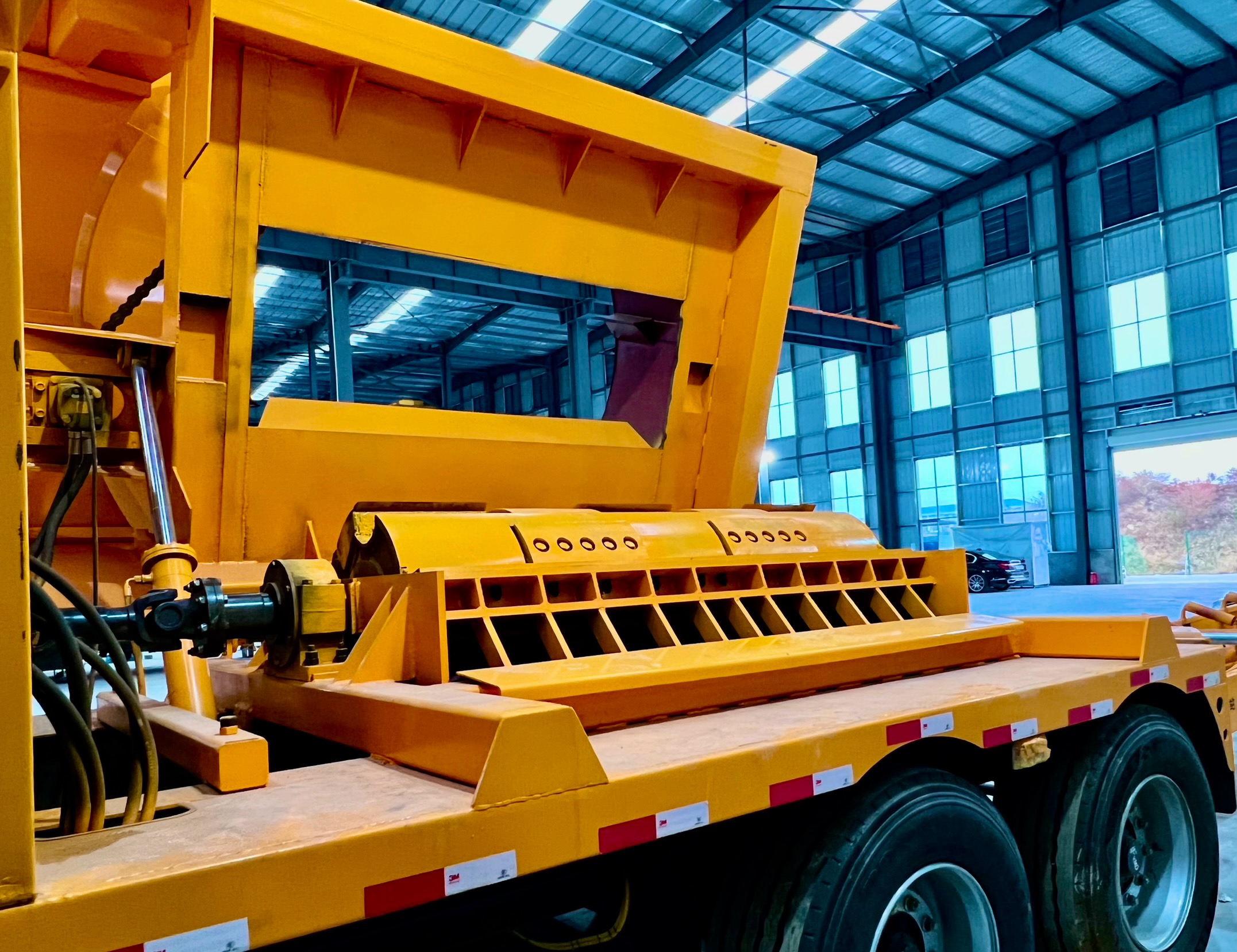

4. The knife roller assembly is suitable for tree roots, branches, branches, bark, bark, straw, etc

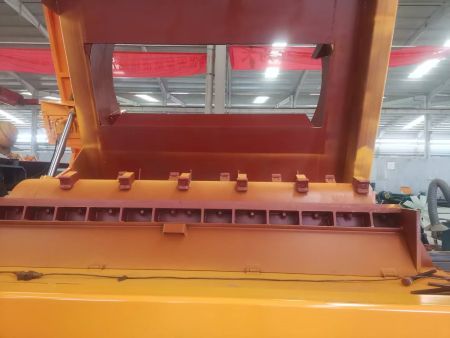

5. The hammer roller assembly is suitable for biomass raw materials such as templates, demolition materials, bar, k, etc.

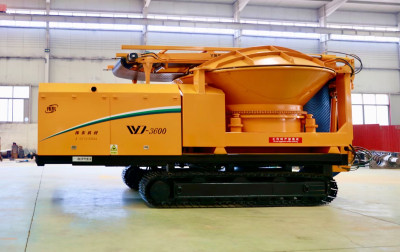

6. If the work yard needs the machine to move frequently, there is a remote control self-propelled crawler chassis 3600 series as an option.
