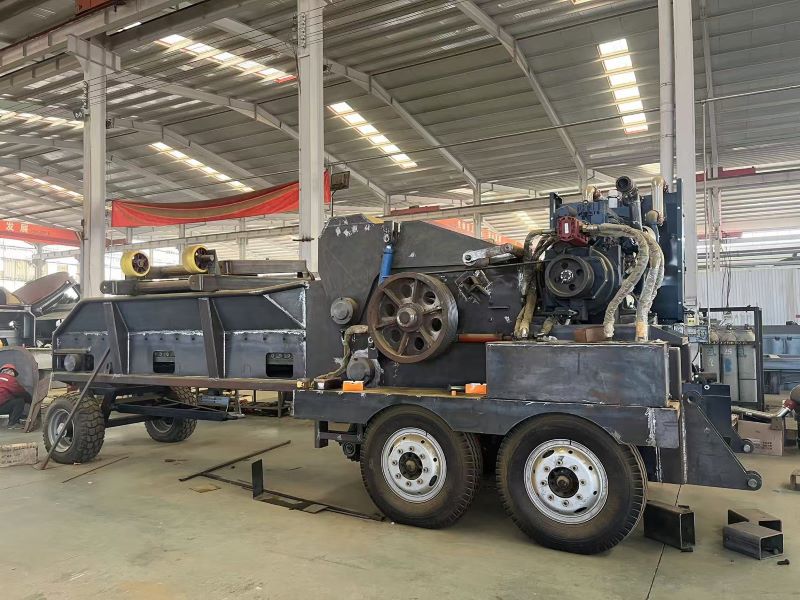

Horizontal Grinder-WD1690

Weidong Machinery Horizontal Series:

Weidong Machinery horizontal series crusher: can choose diesel power or electric, traction or fixed vehicle, size, and specifications, rich in configurations. Depending on the actual production, a variety of different accessories can be selected, and any needs in the field of biomass crushing can be flexibly customized.

All models are designed and produced in a production-specific manner, with maximum optimization in terms of power and function, performance, and output to ensure the efficiency and durability of the machine. In recent years, it has won a good reputation from customers: low cost of use, good profit of production capacity, decades of use and high transfer price Models, benefits, and options wedding horizontal crusher adopts a customized semi-trailer chassis, which can be legally on the road with a license plate, adopts full hydraulic drive control, is flexible and convenient to use, and is more convenient for maintenance and repair, and has a wide range of applications in the fields of pruning branch crushing and transportation, green waste treatment, site cleaning, disaster cleaning, municipal demolition, template bark, agricultural straw, and other regeneration fields.

1. First-stage discharge belt conveyor

The integrated discharge belt conveyor is adopted, and the machine runs smoothly, has a simple structure does not leak materials, reduces wear and tear, and does not deviate, so that the machine runs more efficiently and reduces maintenance time.

2. Integrated control system

The integrated monitoring and control system can monitor the oil pressure, oil temperature, water temperature, speed, voltage, and other parameters of the equipment, as well as the monitoring of all the functions of the engine, and intelligently start and stop the power

It can be used for full performance, reduce unnecessary downtime, improve effective machine time, and realize the comprehensive diagnosis and monitoring and recording of the equipment by the machine operator-site or remotely

Device operating data and parameters.

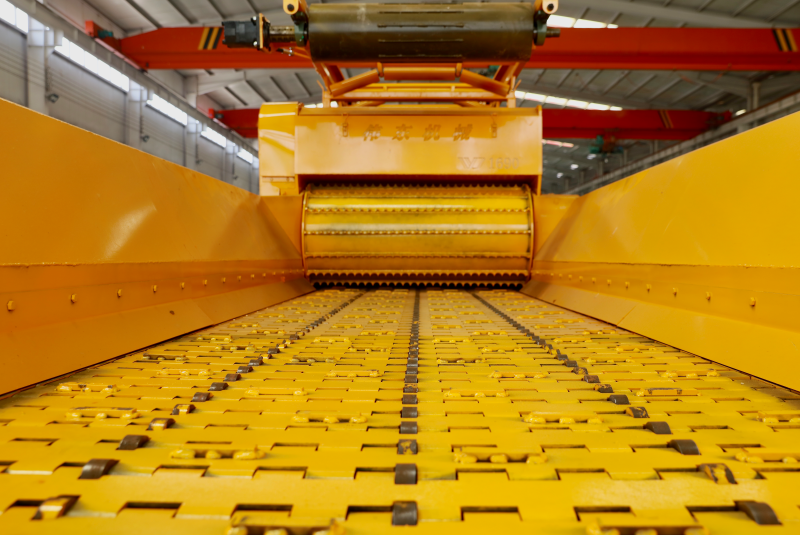

3. Pressing feeding system

The pressing feeding system includes an overhead hydraulic swing feeding roller and a feeding chain, and the pressing feeding roller uses a hydraulic cycloidal motor to drive the reducer to drive the feeding roller to rotate. With strong torque, low failure rate, and minimal maintenance workload, the feed chute is welded by a manganese steel wear-resistant plate, and the feed chain with hook teeth is combined with a large feeding opening, which can be sawed or cut when large logs, which not only saves time and effort to improve work efficiency but also ensures the consistency of finished products and intelligent feeding.

4. Grinder knife roller

The grinder knife roller is durable, and the special blade for chipping is wear-resistant, and durable, the blade.

mounting groove is made of high-precision machining, and the pressure blade plate is made of manganese steel plate, which is not easy to deform and impact

High wear resistance, the bottom cutter seat pressure knife screw hole adopts bushing nut inlay type, which is convenient for screw aging in the later stage and easy to replace the bushing nut, and the reverse cutter assembly can be adjusted for use.

It is easy to replace, and once again saves the user the cost of purchasing the entire cutter roller and blade combination accessories.

5. Main pulley

The main pulley is made of ductile iron, which is not easy to deform and damage and has high wear resistance.
