Crawler Type Tub Grinder-WD3600C
Model | WD3600C |
Raw material | Tree roots， branches， straw, etc |
Machine Size | 7500mmx2600mmx3500mm |
Machine Weight | 21T |
Capacity | 25~40T/hour |
Engine Power (KW) | 408KW |
Inlet size | Ø 3600mm |
Cutting hole size | Ø2350mm |
Feed tray depth | 1370mm |
Spindle working speed | 850rpm/min |
Fuel consumption rate | 20-40L/H |
Fuel tank volume | 310L |
Hydraulic tank volume（L） | 420L |
Cutting roll size | 2200mmx670mm |
Cutter | 10 sets |
Cutter size | 465mmx220mmx20mm |
Cutter screws | 5 pcs/knife |
Number of bed knives | 2 set |
Bed knife size | 1100mmx110mmx30mm |
Bottom cutter screws | 12 pcs |

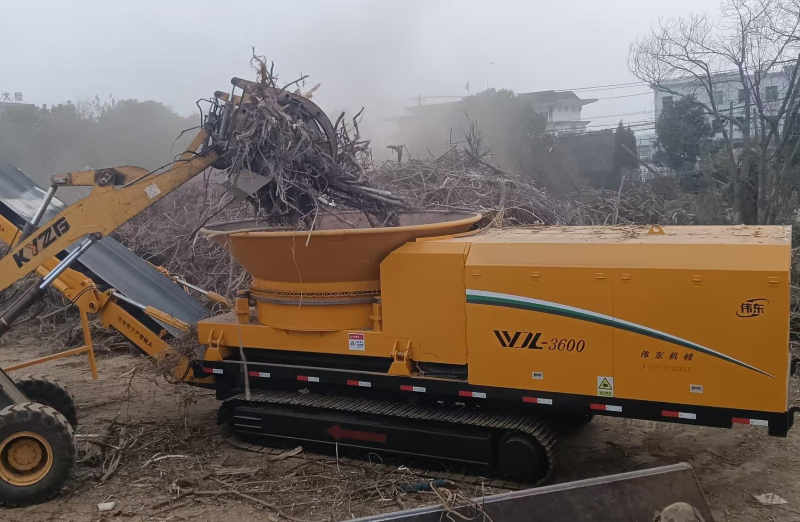

1. The WD3600C type is appropriate for frequent move requesting work yard, which has a remote control function.

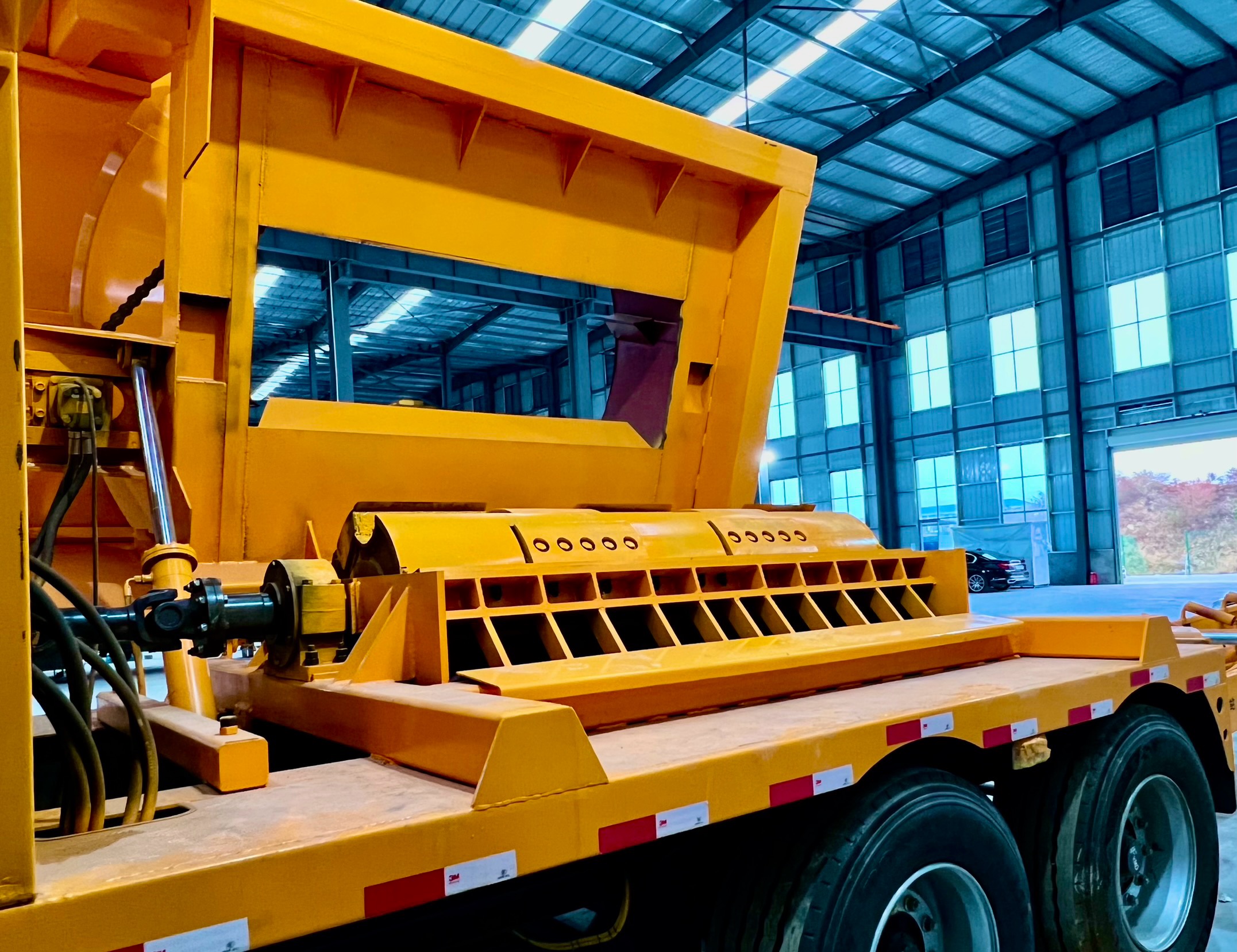

2. The workbench can be turned over at 90 degrees for cleaning up materials, which is convenient for maintenance
3. The knife roller assembly is suitable for tree roots, branches, branches, bark, bark, straw, etc
4. The hammer roller assembly is suitable for biomass raw materials such as templates, demolition materials, bark, etc.
